About This Weather Station

The station is located at the heart of the Historical Center of Thessaloniki. Use the navigation symbols on the dynamic map below to walk through the location details.

View meteothes.gr in a larger map

The station is powered by an automated wireless Davis Vantage Pro2-Plus. The data is collected every 2 seconds and the site is updated every 5 minutes. This site and its data is collected using Weather Display Software. The station is comprised of an anemometer, a rain gauge, a thermo-hydro sensor and solar/UV sensors, situated in optimal positions for highest accuracy possible.

The outdoor unit (ISS), is powered directly by a solar panel during daytime and at nightime, by energy stored into a "supercapscitor" which is also charged from the same solar panel during the day!

Weather Station Equipment

Installation Details/Equipment

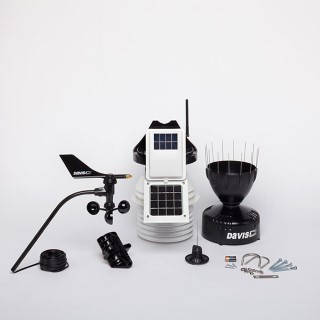

Weather Station: Davis Vantage Pro2 Plus Wireless with Fan Aspirated Radiation Shield (FARS).

Solar Sensors: Solar energy and UV(ultra-violet) measurement sensors installed (since 10-Sep-2006).

Datalogger: Serial (RS232) interface (Weatherlink).

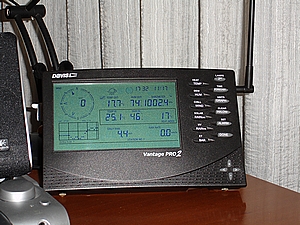

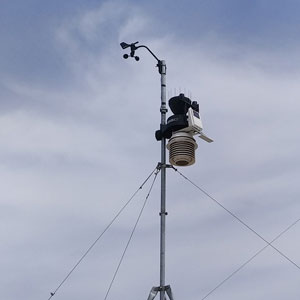

Installation: The Weather Station is installed 2 meters above the terrace of an 8 floor building. The surface underneath, is covered with gravel and ceramic tiles to block the heat radiated by the concrete and isolation coating. The console is located on the 5th floor, approximately 15 meters farther. It is connected to the server via serial(RS232) interface.

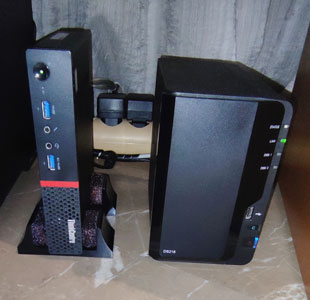

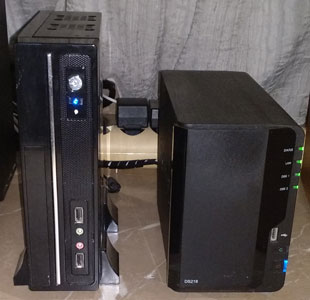

Server: Dedicated (24hours) PC, comprised of an Intel Dual Core CPU, 3GB DDR2-RAM, 120 GB HD, Windows XP/SP3 with remote administration.

Data Switch: 8-port TP-LINK Gigabit Switch.

Software: Weather Display v10.xx, Weather Display LIVE! v6.xx, Weatherlink 5.xx and WX-SIM weather forecast model.

Connectivity: Broadband aDSL connection 24/1 Mbps over POTS - ISP(HOL).

Router: Intracom NetFaster IAD2 AnnexA/Wireless(WiFi).

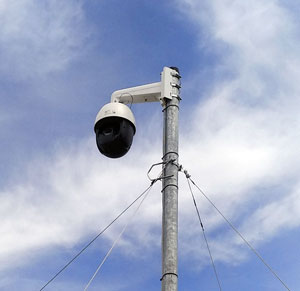

Sky-IPcam: Vivotek IP-7131.

Street-IPcam: LevelOne FCS-1030.

FARS: *Fan Aspirated Radiation Shield during daytime.
