Weather Station's Davis Vantage Pro2 Plus Console Live! |
This is a Live! representation of the Weather Station's Console with realtime data! |
To save bandwidth, the console stops updating after a while! To start the console updating again, please press this button: |
GRAY BUTTONS:
LAMPS - Display backlight BLACK BUTTONS: TEMP - Show 24h temperaturegraph HUM - Show 24h humiditygraph WIND - Show 24h windspeedgraph RAINday - Show 24h raingraph RAINyr - 1st click: show montly rain - 2nd click: show yearly rain - 3rd click: back to rainrate BAR - Show 24h barograph
Based on script by Axelvold's weather & Photo and
Stenestads Vader, modification by
Weatherstation Pertteli, icons by
Saaasema Teutari
|
| Weather Station Parts and Operation | |
 |
 |

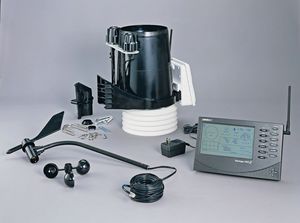

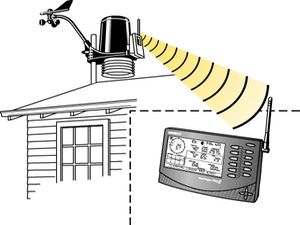

| Weather Station Parts | ISS Wireless Communication with Console |
|
The Console, is the "brain" of the Vantage Pro2+ Wireless Weather Station! It collects, processes and stores all weather data which are transmited by the outdoor unit ISS where most of the sensors are located. It also contains the "datalogger", which is the first level data storage unit of raw weather data before they are processed by the weather server. |
|
 |
 |

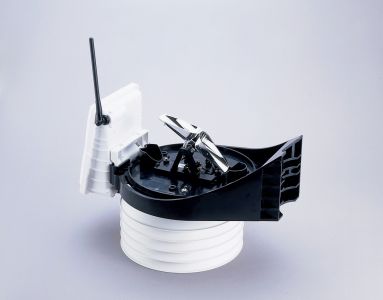

| The serial datalogger unit, is embedded into the console and stores all the raw data transmitted by the outdoor unit, ISS. It is connected to the computer via the cable to a RS232 serial port. | The ISS unit is installed outdoors. In the picture above, you can see the transmitter, the rain collector mechanism (the funnel rain collector cover has been removed) and the radiation shield on the lower part, which contains the temperature and humidity sensors. |
